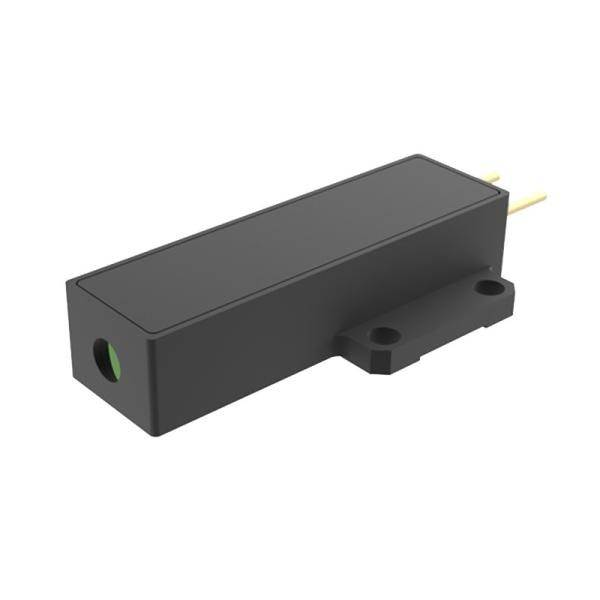

Our SLY series erbium-doped glass lasers can be used within human eye safety range, easy to control, highly efficient and have a long lifetime. These lasers are available in various wavelengths at 1535 and 1537nm.
Features:
Applications:
1. A1 Series Er Glass Lasers SLY-1535-xxx-A1
| Parameters | SLY-1535-100-A1 | SLY-1535-200-A1 | SLY-1535-300-A1 | SLY-1535-400-A1 |
| Wavelength | 1535nm | |||
| Pulsed width (FWHM) | 3ns - 6ns | |||
| Pulsed energy (µJ) | 100 | 200 | 300 | 400 |
| Peak Power (kw) | 25 | 50 | 70 | 80 |
| Energy Stability | ≤5% | |||
| Beam-divergence angle | ≤12mrad | |||
| Working Voltage | 2V | |||
| Working current (A) | 7 | 12 | 12 | 14 |
| Working Frequency | 1Hz – 10Hz | |||
| Pulsed Width | 1ms -2.5ms | |||
| Working temperature | -40°C - 60°C | |||
| Storage temperature | -50°C - 70°C | |||
| Life Time | 10000000 times | |||
| Weight | <10g | |||
Dimension of SLY-1535-xxx-A1:
Remark:
xxx: pulsed energy (µJ)
2. A3 Series Er Glass Lasers SLY-1535-xxx-A3
| Parameters | SLY-1535-100-A3 | SLY-1535-200-A3 | SLY-1535-300-A3 | SLY-1535-400-A3 |
| Wavelength | 1535nm | |||
| Pulsed width (FWHM) | 3ns - 6ns | |||
| Pulsed energy (µJ) | 100 | 200 | 300 | 400 |
| Peak Power (kw) | 25 | 50 | 70 | 80 |
| Energy Stability | ≤5% | |||
| Beam-divergence angle | ≤12mrad | |||
| Working Voltage | 2V | |||
| Working current (A) | 7 | 12 | 12 | 14 |
| Working Frequency | 1Hz - 10Hz | |||
| Pulsed Width | 1ms - 2.5ms | |||
| Working temperature | -40°C - 60°C | |||
| Storage temperature | -50°C - 70°C | |||
| Life Time | 10000000 times | |||
| Weight | <10g | |||
Dimension of SLY-1535-xxx-A3:
Remark:
xxx: pulsed energy (µJ)
3. A4 Series Er Glass Lasers SLY-1535-xxx-A4
| Parameters | SLY-1535-100-A4 | SLY-1535-200-A4 | SLY-1535-300-A4 | SLY-1535-400-A4 |
| Wavelength | 1535nm | |||
| Pulsed width (FWHM) | 3ns - 6ns | |||
| Pulsed energy (µJ) | 100 | 200 | 300 | 400 |
| Peak Power (kw) | 25 | 50 | 70 | 80 |
| Energy Stability | ≤5% | |||
| Beam-divergence angle | ≤0.5mrad | |||
| Working Voltage | 2V | |||
| Working current (A) | 7 | 12 | 12 | 14 |
| Working Frequency | 1Hz - 10Hz | |||
| Pulsed Width | 1ms - 2.5ms | |||
| Working temperature | -40°C - 60°C | |||
| Storage temperature | -50°C - 70°C | |||
| Life Time | 10000000 times | |||
| Weight | <20g | |||
Dimension of SLY-1535-xxx-A4:
Remark:
xxx: pulsed energy (µJ)
4. A5 Series Er Glass Lasers SLY-1535-xxx-A5
| Parameters | SLY-1535-100-A5 | SLY-1535-200-A5 | SLY-1535-300-A5 | SLY-1535-400-A5 |
| Wavelength | 1535nm | |||
| Pulsed width (FWHM) | 3ns - 6ns | |||
| Pulsed energy (µJ) | 100 | 200 | 300 | 400 |
| Peak Power (kw) | 25 | 50 | 70 | 80 |
| Energy Stability | ≤5% | |||
| Beam-divergence angle | ≤0.5mrad | |||
| Working Voltage | 2V | |||
| Working current (A) | 7 | 12 | 12 | 14 |
| Working Frequency | 1Hz - 10Hz | |||
| Pulsed Width | 1ms - 2.5ms | |||
| Working temperature | -40°C - 60°C | |||
| Storage temperature | -50°C - 70°C | |||
| Life Time | 10000000 times | |||
| Weight | <20g | |||
Dimension of SLY-1535-xxx-A5:
Remark:
xxx: pulsed energy (µJ)
5. A6 Series Er Glass Lasers SLY-1535-40-A6
| Parameters | SLY-1535-40-A6 |
| Wavelength | 1535nm |
| Pulsed width (FWHM) | 3ns - 5ns |
| Pulsed energy (µJ) | 40 |
| Peak Power (kw) | 10 |
| Energy Stability | ≤5% |
| Beam-divergence angle | ≤0.5mrad |
| Working Voltage | 2V |
| Working current (A) | 3 |
| Working Frequency | 10000Hz |
| Pulsed Width | 0.2ms – 0.4ms |
| Working temperature | -40°C - 60°C |
| Storage temperature | -50°C - 70°C |
| Life Time | 10000000 times |
| Weight | <20g |
Dimension of SLY-1535-40-A6:
6. A8 Series Er Glass Lasers SLY-1535-2000-A8
| Parameters | SLY-1535-2000-A8 |
| Wavelength | 1535nm |
| Pulsed width (FWHM) | 10ns - 15ns |
| Pulsed energy (µJ) | 2000 |
| Peak Power (kw) | 150 |
| Energy Stability | ≤5% |
| Beam-divergence angle | ≤4mrad |
| Working Voltage | <4V |
| Working current (A) | 70 |
| Working Frequency | 1Hz – 5Hz |
| Pulsed Width | 3ms – 5ms |
| Working temperature | -40°C - 60°C |
| Storage temperature | -55°C - 75°C |
| Life Time | 10000000 times |
| Weight | <80g |
Dimension of SLY-1535-2000-A8:
7. C1 Series Er Glass Lasers SLY-1535-500-C1
| Parameters | SLY-1535-500-C1 |
| Wavelength | 1535nm |
| Pulsed width (FWHM) | 4ns - 6ns |
| Pulsed energy (µJ) | 500 |
| Peak Power (kw) | 100 |
| Energy Stability | ≤5% |
| Beam-divergence angle | ≤12mrad |
| Working Voltage | 2V |
| Working current (A) | 15 |
| Working Frequency | 1Hz – 5Hz |
| Pulsed Width | 1ms – 2.5ms |
| Working temperature | -40°C - 60°C |
| Storage temperature | -50°C - 70°C |
| Life Time | 10000000 times |
| Weight | <20g |
Dimension of SLY-1535-500-C1:
8. C2 Series Er Glass Lasers SLY-1535-40-C2
| Parameters | SLY-1535-40-C2 |
| Wavelength | 1535nm |
| Pulsed width (FWHM) | 3ns - 4ns |
| Pulsed energy (µJ) | 40 |
| Peak Power (kw) | 10 |
| Energy Stability | ≤5% |
| Beam-divergence angle | ≤15mrad |
| Working Voltage | 2V |
| Working current (A) | 3 |
| Working Frequency | 1000Hz |
| Pulsed Width | 0.2ms – 0.4ms |
| Working temperature | -40°C - 60°C |
| Storage temperature | -50°C - 70°C |
| Life Time | 10000000 times |
| Weight | <10g |
Dimension of SLY-1535-40-C2:
9. C3 Series Er Glass Lasers SLY-1535-xxx-C3
| Parameters | SLY-1535-100-C3 | SLY-1535-200-C3 | SLY-1535-300-C3 | SLY-1535-400-C3 |
| Wavelength | 1535nm | |||
| Pulsed width (FWHM) | ≤12ns | |||
| Pulsed energy (µJ) | 100 | 200 | 300 | 400 |
| Peak Power (kw) | 25 | 50 | 70 | 80 |
| Energy Stability | ≤5% | |||
| Beam-divergence angle | ≤0.5mrad | |||
| Working Voltage | 2V | |||
| Working current (A) | 7 | 12 | 12 | 14 |
| Working Frequency | 1Hz - 10Hz | |||
| Pulsed Width | 1ms - 2.5ms | |||
| Working temperature | -50°C - 70°C | |||
| Storage temperature | -55°C - 75°C | |||
| Life Time | 10000000 times | |||
| Weight | <15g | |||
Dimension of SLY-1535-xxx-C3:
Remark:
xxx: pulsed energy (µJ)
10. C7 Series Er Glass Lasers SLY-1535-40-C7
| Parameters | SLY-1535-40-C7 |
| Wavelength | 1535nm |
| Pulsed width (FWHM) | 3ns - 5ns |
| Pulsed energy (µJ) | 40 |
| Peak Power (kw) | 10 |
| Energy Stability | ≤5% |
| Beam-divergence angle | ≤0.5mrad |
| Working Voltage | 2V |
| Working current (A) | 3 |
| Working Frequency | 1000Hz |
| Pulsed Width | 0.2ms – 0.4ms |
| Working temperature | -40°C - 60°C |
| Storage temperature | -50°C - 70°C |
| Life Time | 10000000 times |
| Weight | <30g |
Dimension of SLY-1535-40-C7:
11. C7 Series Er Glass Lasers SLY-1537-500-C9
| Parameters | SLY-1537-500-C9 |
| Wavelength | 1537nm |
| Pulsed width (FWHM) | 4ns - 7ns |
| Pulsed energy (µJ) | 500 |
| Peak Power (kw) | 10 |
| Energy Stability | ≤5% |
| Beam-divergence angle | ≤5mrad |
| Working Voltage | 4V |
| Working current (A) | 20 |
| Repeating Frequency | 10Hz |
| Working temperature | -40°C - 60°C |
| Storage temperature | -55°C - 75°C |
| Life Time | 10000000 times |
| Weight | <20g |
Dimension of SLY-1537-500-C9:
NOTE:
1. Anti-static measures must be taken during transportation, storage and use.
2. Laser diode pins need to be protected by connecting short lines between them.
3. Laser window to ensure clean and pollution-free.
4. Use constant-current power supply to avoid peaks and surges when working.
5. The laser must be installed reliably when working.
6. Follow the operating instruction manual.
7. For other questions, please contact us.
|
|
