Single Mode Fiber Coupled Laser Diodes Multi Mode Detachable Fiber Laser Module

Single Mode Fiber-coupled Laser Diodes,Multi-mode Fiber Detachable Laser Module

1. Single Mode Fiber Coupled Laser Diodes

Features:

• 405nm~1650nm
• SM and PM Fiber
• 1mW~100mW Output Power
• PER upto 20dB
• Built-in TE Cooler Optional
• Built-in Photodiode Optional
• Long Lifetime
• High Stability
• Customized Wavelength
• Customized Output Power

We offer High Coupling Efficient Solution for 405nm~1650nm Pigtailed Laser Module with Single Mode Fiber and Polarization Maintaining Fiber and the output power can be up to 100mW. We adopt unique technique to get high Polarization Extinction Ratio (PER), which is up to 20dB with Low Noise Laser Output.

With SM and PM Fiber, it can get the Gauss Beam which is the Single Transverse Mode Beam, the M2 value is less 1.3. Meanwhile, and the TE Cooler and Photodiode is optional for customers. We can integrate them into the Laser Module according to customer's requirement. We also offer the Customized Solution for Pigtailed Laser Modules, such as Customized Wavelength and Customized Power to meet the special needs of customers.

We use laser welding technology to guarantee the long-term reliability of the laser structure. To ensure the long-term reliability, each laser diode will undergo rigorous testing and aging in factory. Meanwhile the high-low storage temperature circulation is also necessary for each laser diode. We set the storage temperature range from -40 degree C to +85 degree C, and it lasts 10 cycles. In this way, it ensures the long-term reliability of the coupling structure.

2. Single Mode Fiber Detachable Laser Module

We offer 445nm~1650nm fiber detachable laser module, which is suitable for single mode fiber, the fiber core can be 3um, 4um, 5um, 6um and 9um, the output power ranges is from 1mW to 100mW. With single mode fiber, it can get a perfect Gaussian beam. It is the single transverse mode. A cooler and a photodiode can be integrated into the laser module according to customer's requirement. The fiber detachable connector is suitable for FC-PC connector. We also offer the customized solution for fiber detachable laser modules, such as customized wavelength and customized power to meet the special needs of customers. We use laser welding technology to guarantee the long-term reliability of the laser structure. To ensure the long-term reliability, each laser module will undergo rigorous testing and aging in factory. Meanwhile the high-low storage temperature circulation is also necessary for each laser module. We set the storage temperature range from -40°C to +85°C, and it lasts 10 cycles. In this way, it ensures the long-term reliability of the coupling structure.

Features:

• 445nm~1650nm
• 1mW~100mW Output Power
• Suitable for 3um/4um/5um/6um/9um Single Mode Fiber
• Perfect Gaussian Beam
• FC Fiber Detachable Connector
• Coaxial/8-PIN Package
• Built-in TE Cooler Optional
• Built-in Photodiode Optional
• Long Lifetime
• High Stability
• Customized Wavelength/Power/Fiber Core

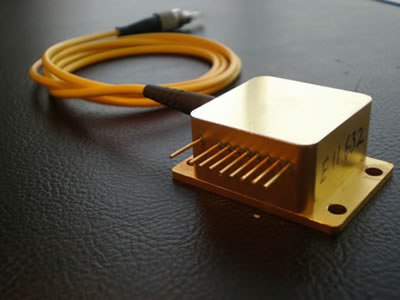

3. Multi-mode Fiber Coupled Laser Diodes

Features:

• 405nm~1920nm
• 5mW~50W Output Power
• 50um/ 105um/ 200um/ 400um Fiber Core
• Coaxial/ 2-PIN/ 4-PIN/ 14-PIN/ 9-PIN Package
• Built-in TE Cooler Optional
• Built-in Photodiode Optional
• Red/Green Aiming Beam Optional for IR LASER
• Long Lifetime
• High Stability
• Customized Wavelength
• Customized Output Power
• Customized Fiber Core

We offer High Coupling Efficient Solution for 405nm~1920nm Pigtailed Laser Module with 50um,105um,200um,400um Fiber Core, the output power ranges from 5mW to 50W. Meanwhile, the TE Cooler and Photodiode is optional for customers, the Green or Red Aiming Beam is also optional for IR Lasers. We can integrate these functions into the Laser Module as per customer's requirement. The standard package of the lasers can be Coaxial,2-PIN,4-PIN,14-PIN and 9-PIN.

4. Multi-mode F iber Detachable Laser Module

We offer 375nm~1920nm fiber detachable laser module with the fiber core 25um, 50um, 105um, 200um and 400um and the output power ranges from 5mW to 30W. The Package can be coaxial, 9PIN, 14PIN, The fiber detachable connector can be SC, FC, ST or SMA905. The TE cooler and photodiode is optional and we can integrate them into the laser module according to customer's requirement. Meanwhile, we also can integrate the red/green aiming beam and fiber detector into the laser module. We also offer the customized solution for fiber detachable laser modules, such as customized wavelength and customized power, meet the special needs of customers. We use laser welding technology to guarantee the long-term reliability of the laser structure. To ensure the long-term reliability, each laser module will undergo rigorous testing and aging in factory. Meanwhile the high-low storage temperature circulation is also necessary for each laser module. We set the storage temperature range from -40°C to +85°C, and it lasts 10 cycles. In this way, it ensures the long-term reliability of the coupling structure.

Features:

• 375nm~1920nm
• 5mW~30W Output Power
• Suitable for 25um/50um/105um/200um/400um Multimode Fiber
• FC/ST/SC/SMA905 Fiber Detachable Connector
• Coaxial/8PIN/9PIN/14PIN Package
• Built-in TE Cooler Optional
• Built-in Photodiode Optional
• Built-in Aiming Beam Optional
• Built-in Fiber Detector Optional
• Long Lifetime
• High Stability
• Customized Wavelength/Power/Fiber Core
