| Brand Name : | Sintec Optronics |
| Certification : | |
| Delivery Time : | Stock |
| Payment Terms : | T/T via bank |
| Model Number : | STK Series |
| Price : | |

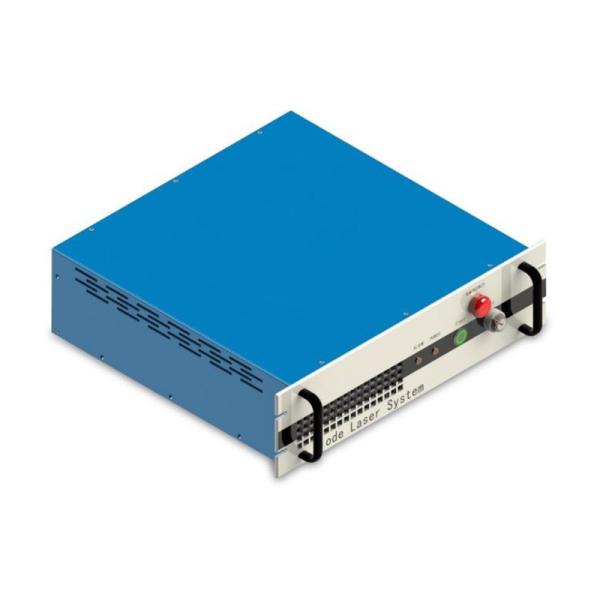

The STK series fiber-coupled blue lasers are manufactured by adopting specialized fiber-coupling techniques, resulting in high efficiency, stability and superior beam quality. The asymmetric radiation from the laser diode chips are coupled into an output fiber with small core diameter by using special micro optics. Their prices are reasonable and cheaper in the market.
| Part Number | STK450FFBFN-0.8W | STK445F03N-3W | STK445FTRFN-20W | STK445FTRFN-50W | STK445FGRFN-200W | |
| Optical Parameter | Laser power(W) | 0.8 | 3 | 20 | 50 | 200 |
| Wavelength(nm) | 450 | 445 | 445 | 445 | 445 | |
| Tolerance(nm) | ±10 | ±10 | ±10 | ±10 | ±10 | |
| Spectral width(nm) | <6 | <6 | <6 | <6 | <8 | |
| Temperature drift (nm/K) | 0.3 | 0.1 | 0.1 | 0.1 | 0.1 | |
| Fiber Data | Core dia.(um) | 105 | 105 | 105 | 200 | 200 |
| NA | 0.22 | 0.22 | 0.22 | 0.22 | 0.22 | |
| Fiber Length (m) | 1.0 | 1.0 | 3.5 | 3.5 | 2.0 | |
| Connector | NIL | SMA905 | SMA905 | SMA905 | SMA905 | |
| Thermistor | K Ohm | option | 10 | 10 | 10 | |
| Electrical Parameter | Operation(A) | 1.0 | 3.0 | 2.5 | 2.8 | 2.5 |
| Threshold current(A) | 0.25 | 0.3 | 0.3 | 0.3 | 0.3 | |
| Operation voltage(V) | 4.8 | 5.2 | 41 | 81 | 220 | |
| Others | Operation temp.(oC) | 15-35 | 15-35 | 15-35 | 15-35 | 15-35 |
| Store temp.(oC) | -20-+70 | -20-+70 | -20-+70 | -20-+70 | -20-+70 | |
| Dimension(mm) | 30x12.7x14.8 | 20x13.6x16 | 143x68x37 | 143x68x37 | 246x204x47 | |
| Pilot | option | |||||
FEATURES
APPLICATION
Compared with traditional laser products, our blue diode laser has a higher absorption rate for materials such as copper and aluminum, and can process non-ferrous metals with lower power. Our blue laser ismore compact and easier to use. With flexible laser output mode, it can be conveniently integrated into the processing system.
Our blue lasers can be used in wide applications like welding, cladding, surface treatment, lithium-ion battery manufacturing, etc. Our professional laser application team, with good knowledge and experience, provides the best laser system solution for our customers all around the world.
| Part number | STK-450-500-330 | STK-450-1000-400 |
| Power | 500W | 1000W |
| Wavelength | 450±5 nm | 450±5 nm |
| Output Fiber Core Diameter | 330 μm | 400 μm |
| Output Cable Length | 10 m or Customized | 10 m or Customized |
| Output Cable Connector | QBH | QBH |
| Aiming Beam | Red | Red |
| Operation Mode | CW or modulation | CW or modulation |
| Polarization | Random | Random |
| Power Stability (25℃) | ＜±1.5% (2h) | ＜±1.5% (2h) |
| Power Adjustment Scope | 10%-100% | 10%-100% |
| Max Modulation Frequency | 5kHz | 5kHz |
| Physical Size (H×W×D) | 798 mm×420 mm×900 mm | 798 mm×420 mm×900 mm |
| Weight | < 130 kg | < 140 kg |
| Power Supply | Three Phase, 380±20 V, AC, PE, 50/60 Hz | Three Phase, 380±20 V, AC, PE, 50/60 Hz |
| Power Consumption | 3.5 kW | 7.0 kW |
| Control Interface | RS232/AD | RS232/AD |
| Minimum Water Cooling Capacity | 3.0 kW | 6.0 kW |
| Temperature Settings | 25℃ (Laser Module), 30℃ (QBH) | 25℃ (Laser Module), 30℃ (QBH) |
| Cooling Tubes Size | I.D. Φ25 mm | I.D. Φ25 mm |
| Cooling Water Flow Rate (Laser Module) | >20 L/min | >25 L/min |
| Cooling Water Flow Rate (QBH) | 1.5~2.0 L/min | 1.5~2.0 L/min |
Note: (1) 2kW available and please contact us for more information. (2) The back reflection will affect the performance and life of the direct diode laser. It is necessary to use the output laser when it is 8-10° away from the vertical direction of the surface.
|
|
