    Q Switched UV DPSS Lasers And Laser Diodes Miniwantt Nanosecond 355nm

    355nm Q-switched Miniwantt Nanosecond UV DPSS Lasers

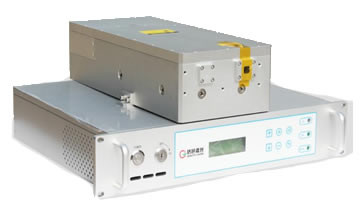

    • Laser head and power supply are individual and the laser head is compact

    • The laser is controlled via built-in panel and RS232

    • Widely used in 3C electronic applications and laser marking of metals and non-metals, 3D printing, surface film removing etc.

    Q Switched UV DPSS Lasers And Laser Diodes Miniwantt Nanosecond 355nmQ Switched UV DPSS Lasers And Laser Diodes Miniwantt Nanosecond 355nm

    Part numberSTL-355-3STL-355-5
    Wavelength355nm355nm
    Output laser power>3W@40kHz>5W@40kHz
    Beam divergence<2mrad<2mrad
    Pulse repetition rate20kHz-200kHz20kHz-200kHz
    Pulse duration<15ns@30kHz<15ns@30kHz
    Pulse to pulse stability<3%<3%
    Average power stability<3%<3%
    Beam spatial modeTEM00 (M2<1.2)TEM00 (M2<1.2)
    Polarization ratio>100:1 horizontal>100:1 horizontal
    Beam diameter<1mm<1mm
    Beam circularity>90%>90%
    CoolingWater coolingWater cooling
    Warm-up time<15min<15min
    Operation temperature18-35oC18-35oC
    Dimension (laser head)292.1x139.7x112.8mm292.1x139.7x112.8mm
    Dimension (power supply)305x250x110mm305x250x110mm
