STC-FC-D series fiber coupled laser is specially designed for Raman spectroscopy, wavelength available from 375nm to 980 nm. The spectral linewidth is optional from 0.1 nm and 0.06 nm according to customers' actual requirements. Housed in ultra compact package, it is the perfect choice for Raman spectrometer, chemical and biological research, environmental science, jewelry appraisal, forensic appraisal, food/drug safety inspection, geological exploration, systems design and integration.
| Wavelength (nm) | Output power (mW) | Wavelength (nm) | Output power (mW) |
| 375 | 1~10 | 690 | 1~450 |
| 405 | 1~100 | 730 | 1~450 |
| 445 | 1~200 | 785 | 1~450 |
| 488 | 1~50 | 808 | 1~450 |
| 514.5 | 1~30 | 830 | 1~100 |
| 633 | 1~50 | 852 | 1~450 |
| 639 | 1~200 | 975 | 1~450 |
| 660 | 1~200 | 980 | 1~450 |
Note: The model of laser is STC-FC-D-X-Y, X stands for wavelength in nm and Y stands for laser power in mW. When placing the order, please indicate spectral line width (0.1 0r 0.06nm) and power stability (1%, 2% or 3%).
| Model | STC-FC-D-375 | STC-FC-D-405 |
| Central wavelength (nm) | 375±0.5 | 405±0.5 |
| Spectral line width (nm) | 0.1 (0.06, optional) | 0.1 (0.06, optional) |
| Operating mode | CW | CW |
| Fiber core diameter | 100μm, 0.22 NA | 100μm, 0.22 NA |
| Fiber connector | SMA905 | SMA905 |
| Output power after fiber (mW) | >1, 2, …, 10 | >1, 10, …, 100 |

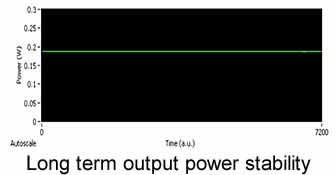

| Power stability (rms, over 4 hours) | <1%, <2%, <3% | <1%, <2%, <3% |
| Central wavelength stability (rms, over 2 hours) (pm) | <10 | <10 |
| Noise of amplitude (rms, 1~20MHz) | <1% | <1% |
| Warm-up time (minutes) | <5 | <5 |
| Operating temperature (℃) | 20~30 | 20~30 |
| Power supply | Adaptor or 5VDC@5A | Adaptor or 5VDC@5A |
| Expected lifetime (hours) | 10000 | 10000 |
| Warranty | 1 year | 1 year |
| Dimension and weight | 169×115×52mm, 1.0kg | 169×115×52mm, 1.0kg |
| Model | STC-FC-D-514.5 | STC-FC-D-633 |
| Central wavelength (nm) | 514.5±0.5 | 633±0.5 |
| Spectral line width (nm) | 0.1 (0.06, optional) | 0.1 (0.06, optional) |
| Operating mode | CW | CW |
| Fiber core diameter | 100μm, 0.22 NA | 100μm, 0.22 NA |
| Fiber connector | SMA905 | SMA905 |
| Output power after fiber (mW) | >1, 2, …, 30 | >1, 10, …, 50 |
| Power stability (rms, over 4 hours) | <1%, <2%, <3% | <1%, <2%, <3% |
| Central wavelength stability (rms, over 2 hours) (pm) | <10 | <10 |
| Noise of amplitude (rms, 1~20MHz) | <1% | <1% |
| Warm-up time (minutes) | <5 | <5 |
| Operating temperature (℃) | 20~30 | 20~30 |
| Power supply | Adaptor or 5VDC@5A | Adaptor or 5VDC@5A |
| Expected lifetime (hours) | 10000 | 10000 |
| Warranty | 1 year | 1 year |
| Dimension and weight | 169×115×52mm, 1.0kg | 169×115×52mm, 1.0kg |
| Model | STC-FC-D-808 | STC-FC-D-852 |
| Central wavelength (nm) | 808±0.5 | 852±0.5 |
| Spectral line width (nm) | 0.1 (0.06, optional) | 0.1 (0.06, optional) |
| Operating mode | CW | CW |
| Fiber core diameter | 100μm, 0.22 NA | 100μm, 0.22 NA |
| Fiber connector | SMA905 | SMA905 |
| Output power after fiber (mW) | >1, 100, …, 450 | >1, 100, …, 450 |
| Power stability (rms, over 4 hours) | <1%, <2%, <3% | <1%, <2%, <3% |
| Central wavelength stability (rms, over 2 hours) (pm) | <10 | <10 |
| Noise of amplitude (rms, 1~20MHz) | <1% | <1% |
| Warm-up time (minutes) | <5 | <5 |
| Operating temperature (℃) | 20~30 | 20~30 |
| Power supply | Adaptor or 5VDC@5A | Adaptor or 5VDC@5A |
| Expected lifetime (hours) | 10000 | 10000 |
| Warranty | 1 year | 1 year |
| Dimension and weight | 169×115×52mm, 1.0kg | 169×115×52mm, 1.0kg |
|
|
