    532nm Telecentric F-Theta Lenses / Scan Lens 515 - 540nm F-Theta Lens / Fused Silica

    532nm F-Theta Lens/Scan Lens, 515-540nm F-theta Lens/Fused Silica

    532nm Telecentric F-Theta Lenses / Scan Lens 515 - 540nm F-Theta Lens / Fused Silica

    Description of STY series f-theta Lenses: STY-xxxx-yyy-zzz-dd-A

    STY--- STY series laser f-theta lenses
    xxxx-- laser wavelength, 1064 means 1064nm, 10.6 means 10.6um.
    yyy---- mark field (scan field), yyy x yyy mm
    zzz---- effective focal length in mm
    dd------ entrance pupil (allowed maximum input laser beam diameter) in mm (option)
    A------ others

    Remark: (1) The f-theta lens consists of 3 lenses and one protective window/glass. The coating is a di-electric layer. The transmission is >99% at 1064nm. Two sides of the protective glass are AR-coated at 1064nm.

    (2) In the following tables, the abbreviations are as follows: FL means effective focal length; EP means max. input beam diameter; SAR means scan area, AS means aperture stop; WD means working distance; OD means max. outside diameter; MT means mount thread, fs means fused silica, SA means max. full diagonal scan angle; L2 (a1) means recommended mirror separation; a2 means 2nd mirror to flange, L1 means the distance 2nd mirror and scan lens, SL means scan length, Length means the total length of the scan lens, WC means water cooled.

    (1) STY Series 532nm Scan Lenses (F-theta Lenses)

    532nm Telecentric F-Theta Lenses / Scan Lens 515 - 540nm F-Theta Lens / Fused Silica

    STY Series 515-540nm F-theta Lens (Fused Silica)

    New Model Old Model F.L.
    mm    		 WD
    mm    		 EP
    mm    		 Scan angle Scan area
    mm    		 FSD
    µm    		 OD
    mm    		 MT
    STY-F-170R-515-540 170 216.37 10 ±26.3º Φ156/110×110 16.6 109 M85x1
    STY-F-170-510-550 STY-510-550-100-170 170 221.09 10 ±25º Φ148/100×100 17.5 90 M85x1
    STY-F-225-510-550 STY-510-550-156-225 225 247.51 18 ±28º Φ220/156×156 12.17 120 M85x1
    STY-F-255-510-550 STY-510-550-170-255 255 367.81 14 ±27.5º Φ240/170×170 17 120 M85x1
    STY-F-350-14-510-550 STY-510-550-212-350 350 283.37 14 ±23.7º Φ300/212×212 24.5 122 M85x1
    STY-F-450-14-510-550 STY-510-550-315-450 450 526.39 14 ±28º Φ445/315×315 31.29 120 M85x1
    STY-F-840-20-510-550 STY-510-550-550-840 840 960.17 20 ±28º Φ778/550x550 40.9 120 M85x1
    STY-F-1150-510-550 STY-510-550-800-1150 1150 1249.47 18 ±28º Φ1131/800x800 40.9 120 M85x1

    STY Series 532nm F-theta Lens (Optical Glass))

    New Model Old Model FL
    mm    		 WD
    mm    		 EP
    mm    		 SA SAR
    mm    		 FSD
    µm    		 OD
    mm    		 MT
    STY-F-63-532 STY-532-35-63 63 58 8 ±22 º Φ50/35x35 7.6 90 M85x1
    STY-F-80-532 STY-532-50-80 80 91.6 10 ±22 º Φ70/50X50 12 90 M85x1
    STY-F-100B-532 STY-532-58-100-10 100 110.37 10 ±25 º Φ82/58x58 9.7 90 M85x1
    STY-F-100R-532 STY-532-58-100-12 100 112.77 12 ±25 º Φ82/58x58 8 90 M85x1
    STY-F-120-532 STY-532-74-120 120 132 12 ±25 º Φ105/74x74 10 90 M85x1
    STY-F-160-532 STY-532-110-160 160 183.18 12 ±28 º Φ155/110x110 12.8 90 M85x1
    STY-F-160-532-58 STY-532-98-160-58 160 186.88 12 ±28º Φ155/110x110 13 90 M85x1
    STY-F-165B-532 STY-532-115-165 165 189.89 20 ±28º Φ1162/115x115 8 120 M85x1
    STY-F-240B-532 STY-532-145-237 237 252.31 20 ±25º Φ207/145x145 11.53 120 M85x1
    STY-F-254-10LNS-532 STY-532-165-254 254 261.51 14 ±28º Φ235/165x165 16 105 M85x1
    STY-F-255-20-532 STY-532-165-255 255 294.0 20 ±26º Φ233/165x165 12.5 120 M85x1
    STY-F-280-532 STY-532-200-280 280 283.46 12 ±28º Φ273/200x200 22 90 M85x1
    STY-F-290-20-532 STY-532-190-290 290 335.98 20 ±26.5º Φ268/190x190 14.1 120 M85x1
    STY-F-330B-532 STY-532-203-330B 330 397.46 14 ±25º Φ287/203x203 22.9 105 M85x1
    STY-F-330C-532 STY-532-203-330C 330 388.27 14 ±25º Φ287/203x203 22.9 120 M85x1
    STY-F-410-532 STY-532-283-410 410 474 15 ±28º Φ400/283x283 26.6 120 M85x1
    STY-F-480-532 STY-532-317-480 480 565 20 ±28º Φ448/317x317 31.15 120 M85x1
    STY-F-535B-532 STY-532-370-535B 535 623.67 20 ±28º Φ532/370x370 26.04 125 M85x1
    STY-F-600-20-532 STY-532-400-600 600 656.71 20 ±27º Φ565/400x400 29.2 140 M85x1

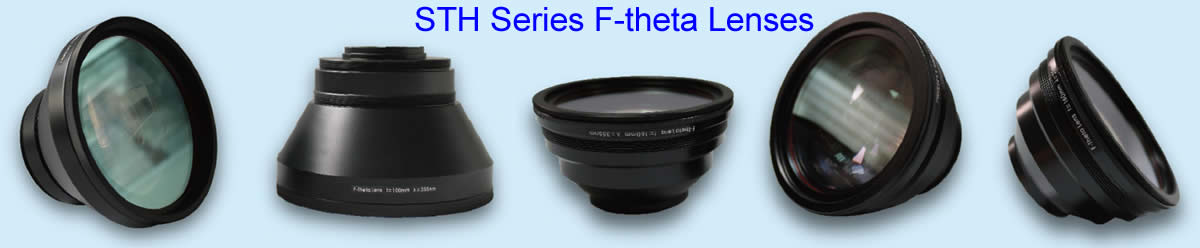

    STH Series 532nm F-theta Lens

    532nm Telecentric F-Theta Lenses / Scan Lens 515 - 540nm F-Theta Lens / Fused Silica

    Model FL
    mm    		 WD
    mm    		 EP
    mm    		 SA
    max    		 SAR
    mm    		 FSD
    µm    		 Mirrors L2/L1
    mm    		 MT
    STH-532-70-100-12 100 114.5 12 ±28º 70x70 10 16/16 M85x1/M79x1
    STH-532-110-160-12 160 186 12 ±28º 110x110 16 16/16 M85x1/M79x1
    STH-532-140-210-12 210 234 12 ±28º 140x140 21 16/16 M85x1/M79x1
    STH-532-175-254-12 254 262 12 ±28º 175x175 25 16/16 M85x1/M79x1
    STH-532-230-330-12 330 359 12 ±28º 230x230 33 16/16 M85x1/M79x1
    STH-532-350-500-12 500 540 12 ±28º 350x350 50 16/16 M85x1/M79x1

    STW Series 532nm F-theta Lenses

    Part number FL (mm) WD (mm) SAR (mm) SA EP (mm) FSD (μm) MT (mm) Material
    STW-532-65-120Q 120 155.6 65*65 20° 12 10-15 M85*1 Quartz
    STW-532-70-100 100 98.98 70*70 ±28° 10 17-28 M85*1 Glass
    STW-532-70-100N 100 106.5 70*70 ±25° 10 9-11 M85*1 Glass
    STW-532-90-120A 120 132.65 90*90 ±25° 8 8-13.6 M85*1 Glass
    STW-532-90-120B 120 132.65 90*90 ±25° 8 8-13.6 M85*1 Glass
    STW-532-90-120N 120 134.98 90*90 ±25° 10 10-10 M85*1 Glass
    STW-532-90-160Q 160 209.61 90*90 25° 14 12-12 M85*1 Quartz
    STW-532-100-160Q 160 198.21 100*100 ±22° 10 15-21 M85*1 Quartz
    STW-532-110-170Q 170 216.7 110*110 ±25° 10 20-25 M85*1 Quartz
    STW-532-115-165 165 183.5 115*115 ±20° 10 17-20 M85*1/M55*1 Glass
    STW-532-115-165N 165 190.22 115*115 ±25° 10 27.2-29.2 M85*1 Glass
    STW-532-115-170 170 195.4 115*115 ±25° 14 20-23 M85*1 Glass
    STW-532-135-200H 200 230.85 135*135 25° 20 10-12 M85*1 Quartz
    STW-532-150-254 254 280 150*150 ±25° 10 20-22.5 M85*1 Glass
    STW-532-150-254B 254 293.98 150*150 ±24° 10 19-20 M85*1 Glass
    STW-532-155-250-V1 250 286.46 155*155 ±25° 20 12-17 M85*1 Quartz
    STW-532-165-255-D20 255 293.3 165*165 ±28° 20 12.3-24.6 M85*1 Glass
    STW-532-165-260Q 260 338.19 155*155 ±25° 14 18-26 M95*1 Quartz
    STW-532-170-254Q 254 302.61 170*170 ±22° 10 23-38 M85*1 Quartz
    STW-532-180-254 254 303.3 180*180 ±10.6° 10 23-31 M85*1 Glass
    STW-532-195-351-D10 351 390.52 195*195 ±22.5° 10 31.2-33.8 M85*1 Glass
    STW-532-255-410 410 450.54 225*225 ±22° 14 26.6-29.8 M85*1 Glass
    STW-532-297-420-D15 420 477.75 297*297 ±28.5° 15 25-36 M85*1 Glass
    STW-532-355-520 520 599.2 335*335 ±25.7° 16 32-35 M102/M85*1 Glass
    STW-532-500-700 750 911.2 510*510 ±27.7° 16 36.9-38 M85*1 Glass

    STC Series 532nm F-theta Lenses

    Part number FL (mm) WD (mm) SAR (mm) EP (mm) MT (mm)
    STC-532-40-65 65 73.5 40*40 10 M85*1
    STC-532-70-100 100 114 70*70 12 M85*1
    STC-532-110-160 160 180 110*110 12 M85*1
    STC-532-150-210 210 232.5 150*150 12 M85*1
    STC-532-165-255-20 255 294 165*165 20 M85*1
    STC-532-175-254 254 287 175*175 12 M85*1
    STC-532-220-330 330 355 220*220 12 M85*1
    STC-532-235-330-16 330 354.6 235*235 16 M85*1
    STC-532-350-500 500 539 350*350 12 M85*1
    STC-532-400-600-20 600 792 400*280 20 M85*1
    STC-532-600-960-30 965 1055.5 600*600 30 M112*1

    STY Series 532nm Telecentric F-theta Lens (Fused Silica)

    New Model Old Model FL
    mm    		 WD
    mm    		 EP
    mm    		 SA
    max    		 SAR, mm (round/square) FSD
    µm    		 OD
    mm    		 Max IA
    (o)    		 MT
    STY-F-63T-510-550 STYT-510-550-23-63 63 82.10 10 ±16º Φ33/23x23 6.2 90 1 M85x1
    STY-F-88T-14-510-550 STYT-510-550-37-88 88 100.63 14 ±17º Φ52/37x37 10 120 1.9 M85x1
    STY-F-100T-510-550 STYT-510-550-54-100 100 142.2 10 ±20.7º Φ76/54x54 13.5 120 0.38 M85x1
    STY-F-100T-14-510-55- STYT-510-550-50-100 100 136.4 14 ±21º Φ70.7/50x50 7 120 1.3 M85x1
    STY-F-167T-14-510-550 STYT-510-550-90-167 167 232.23 14 ±21º Φ127/90x90 11.61 140 3 M85x1

    STY Series 532nm Telecentric F-theta Lens (Optical Glass)

    New Model Old Model FL
    mm    		 WD
    mm    		 E.P.
    mm    		 Scan angle
    maxi    		 SAR, mm (round/square) FSD
    µm    		 OD
    mm    		 Max A
    (o)    		 MT
    STY-F-100T-532 STYT-532-50-100 100 125.04 15 ±21.5º Φ71/50x50 6.5 120 3.2 M85x1
    STY-F-110T-532 STYT-532-60-110 110 132.94 15 ±21.5º Φ83/60x60 7.2 120 3.2 M85x1
    STY-F-170T-532 STYT-532-91-170 170 214.66 14 ±21.8º Φ129/91x91 11.8 140 3 M85x1
    STY-F-170T-20-532 STYT-532-100-170 170 204.79 20 ±24º Φ141/100X100 8.53 164 4 M102x1

    STY-WT Series 532nm Scan Lenses

    Part No. FL (mm) Scan Angle (±°) Scan Length (mm) SAR (mm) EP (mm) Focus size (um) Length (mm) WD (mm) MT
    STY-532-70-100-WT 100 25° 87.0 70x70 14.0 12.0 50.0 100.0 M85x1
    STY-532-90-120-WT 120 25° 102.0 90x90 8.0 10.8 38.85 134.0 M85x1
    STY-532-100-162-WT 162 23° 132.9 100x100 7.0 - 25.2 183.4 M39/M55
    STY-532-115-165-WT 165 20° 163.0 115x115 10.0 18.5 48.0 186.0 M85x1
    STY-532-148-233-WT 234 26° 211.0 148x148 10.0 - 55.3 282.0 M85x1
    STY-532-150-254-WT 254 25° 220.0 150x150 10.0 21.5 51.0 280.0 M85x1
    STY-532-225-410-WT 410 25° 366.0 225x225 15.0 15.0 48.94 443.7 M85x1
    STY-532-350-508-WT 508 25° 500.0 350x350 16.0 15.0 57.0 581.0 M85x1
    STY-532-510-740-WT 740 20° 721.0 510x510 16.0 18.5 65.0 896.5 M85x1
    STY-532-550-768-WT 768 28° 710.0 550x550 16.0 24.0 58.0 839.0 M102x1

    (2) STS Series 532nm Scan Lenses (F-theta Lenses)

    532nm Telecentric F-Theta Lenses / Scan Lens 515 - 540nm F-Theta Lens / Fused Silica

    STS Series Standard ƒ-Theta Lenses at 532nm (fused silica)

    part number
    standard, 532nm    		 part number
    low absorption
    515-545nm    		 FL
    mm    		 SA
    ±°    		 scan length
    mm    		 SAR
    mm    		 EP
    mm    		 AS
    mm    		 Length
    mm    		 OD
    mm    		 WD
    mm
    STS-3100/121 STS-3100/292 112.8 26.6 105.1 74x74 5.0 19.2 49.0 89.0 151.5
    STS-3260/121 STS-3260/292 259.9 25.8 231.0 162x162 10.0 26.0 61.0 105.0 325.4
    STS-1330/121 STS-1330/292 347.9 24.0 303.5 212x212 14.0 36.0 108.4 122.0 279.0

    STS Series Standard ƒ-Theta Lenses at 532nm (Optical Glass)

    part number
    standard, 532nm    		 FL
    mm    		 SA SL SAR
    mm    		 EP
    mm    		 aperture stop
    mm    		 Length
    mm    		 OD, mm MT WD
    mm
    STS-0063/121 62.9 19.6 42.5 30x30 7.0 15.0 35.6 59.2 M39/M55 76.0
    STS-0101/121 89.7 25.4 79.4 58x58 6.0 18.0 40.0 90.0 M85x1 97.0
    STS-0163/121 148.0 21.4 111.4 77x77 7.0 20.0 43.3 89.0 M85x1 162.7
    STS-2163/121 148.3 31.2 160.8 114x114 10.0 29.0 66.0 128.0 M85x1 173.4
    STS-0162/121 162.1 23.0 132.8 100x100 7.0 17.4 25.2 59.2 M39/M55 183.4
    STS-3164/121 162.8 30.0 177.7 120x120 10.0 28.0 46.6 106.0 M85x1 186.5
    STS-1254/121 233.5 26.0 210.9 148x148 10.0 24.7 55.3 109.0 M85x1 282.0
    STS-0300/121 278.7 29.0 281.1 200x200 14.0 29.0 78.0 128.0 M85x1 326.4
    STS-0508/121 520.5 25.2 466.9 330x330 16.0 43.0 56.9 127.0 M85x1 594.7
    STS-0825/121 768.6 28.0 781.0 552x552 16.0 33.0 58.0 130.0 M102x1 839.2

    STS Series Telecentric ƒ-Theta Lenses at 532nm (Fused Silica)

    part number
    standard, 532nm    		 part number
    low absorption
    515-545nm    		 FL
    mm    		 SA
    ±°    		 SL
    mm    		 SAR
    mm    		 EP
    mm    		 AS
    mm    		 Length
    mm    		 OD
    mm    		 WD
    mm
    STS-4031/121 STS-4031/292 32.2 4.0 8.9 6x6 10.0 16.5 39.8 90.0 28.4
    STS-3046/121 STS-3046/292 48.1 7.6 9.9 7x7 15.0 26.0 64.9 90.0 60.2
    STS-3050/121 STS-3050/292 58.5 14.8 29.9 20x20 6.0 21.0 39.8 87.0 79.3
    STS-4010/121 STS-4010/292 100.0 14.0 49.5 35x35 10.0 30.0 78.7 106.0 130.7
    STS-3161/121 STS-3161/292 163.9 21.0 126 90x90 10.0 26.6 98.0 122.0 219.0

    STS Series Telecentric ƒ-Theta Lenses at 532nm (Optical Glass)

    part number
    standard, 532nm    		 FL
    mm    		 SA
    ±°    		 SL
    mm    		 SAR
    mm    		 EP
    mm    		 AS
    mm    		 Length
    mm    		 OD
    mm    		 MT WD
    mm
    STS-0058/121 53.1 11.8 21.8 15x15 6.0 25.5 40.7 90.0 M85X1 52.6
    STS-0055/121 59.3 14.0 28.5 20x20 10.0 16.9 58.0 90.0 M85X1 73.2
    STS-0080/121 77.0 26.6 68.7 49x49 14.0 22.8 83.8 107.0 M85X1 74.2
    STS-1094/121 88.0 17.4 52.5 36x36 16.0 33.8 66.3 83.0 70.00 107.3
    STS-5100/121 100.1 29.2 97.6 69x69 10.0 30.0 85.5 128.0 M85X1 127.7
    STS-5165/121 162.7 19.6 109.6 75x75 10.0 53.9 128.5 136.0 M85X1 194.6
    STS-0141/121 171.0 11.9 70.7 50x50 10.0 98.4 70.6 108.0 M85X1 198.4
    STS-0200/121 198.5 15.6 107.2 75x75 20.0 111.6 93.9 142.0 TK133.0 231.9
    STS-0220/121 201.5 29.2 197.1 139x139 10.0 46.0 160.0 265.0 TK267.0 280.5
    STS-0221/121 201.5 29.2 197.1 139x139 10.0 46.0 176.7 281.0 TK267.0 265.9

    (3) STK Series 515/532nm F-theta / Telecentric F-theta Lenses

    Model FL
    (mm)    		 EP
    (mm)    		 SAR
    (mm)    		 SA
    (deg)    		 FSD
    (um)    		 WD
    (mm)    		 Tele-centricity OD
    (mm)    		 Length
    (mm)    		 MT
    STK-515-28-79 70 14 Φ40/28x28 82.2 <1 o M85x1
    STK-532-40-110 110 14 Φ57/40X40 149 <2 o M85x1
    STK-532-80-163 163 10 Φ113/80X80 227 <1.1 o M85x1
    STK-515-150-350 350 30 150x150 ±18 20 464 <7 o 205 157 M110x1
    STK-515-162-250 250 10 Φ230/162X162 319 <5 M85x1
    STK-532-165-250 250 20 Φ233/165X165 300 M83.5x1
    STK-532-165-255 255 20 Φ255/165x165 272 <16o M85x1
    STK-532-170-260 260 20 Φ240/170X170 360 <1.5o M85x1
    STK-532-230-350 350 16 Φ327/230x230 381 M85x1

    If you can not find a suitable f-theta lens, please download the form here and email us your filled form. We can custom-desing and make the lenses according to your specific requirements.

    Product Tags:

    F-Theta Lenses



    532nm F-Theta Lenses



    Scan Lens


    Quality 532nm Telecentric F-Theta Lenses / Scan Lens 515 - 540nm F-Theta Lens / Fused Silica for sale

    532nm Telecentric F-Theta Lenses / Scan Lens 515 - 540nm F-Theta Lens / Fused Silica

    Inquiry Cart 0
    Send your message to this supplier

    *From:
    *To: Wuhan Sintec Optronics Co., Ltd,
    *Subject:
    *Message:
    Characters Remaining: (0/3000)

    Find Similar Products By Category:
    Manufacturing & Processing Machinery
    Hot Searches:

    Friendly Links: www.everychina.com

    Home| Products| Suppliers| Site Map |About Us |Contact Us |Help |关于我们 |联系我们

    Copyright © 2009 - 2025 himfr.com. All rights reserved.

    北京环球广贸软件技术有限责任公司
