    Handheld Fiber CNC Laser Welding Machine For Aluminum Galvanized Plate Steel

    Ask Lasest Price
    Brand Name : Sintec Optronics
    Model Number : STW003
    Certification :
    Payment Terms : T/T via bank
    Supply Ability :
    Delivery Time : Stock
    Price :
    • Product Details
    • Company Profile

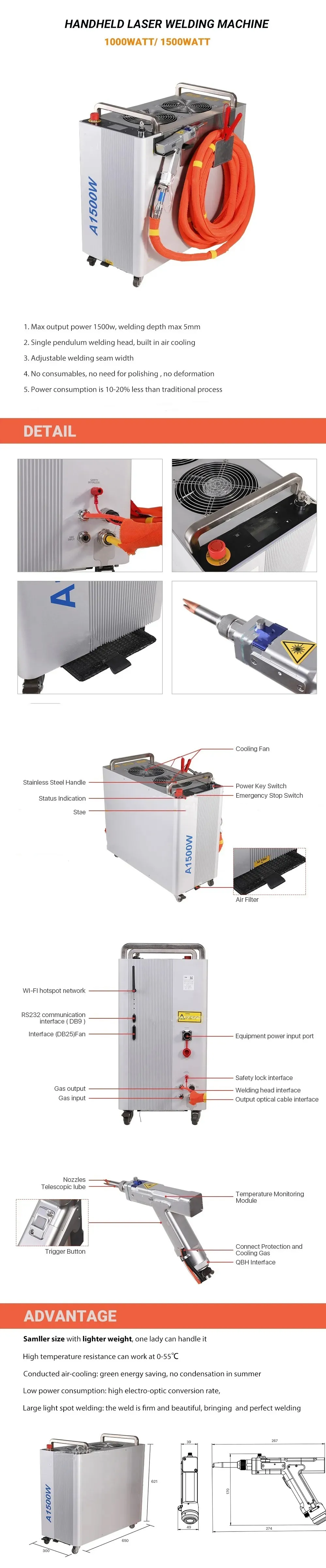

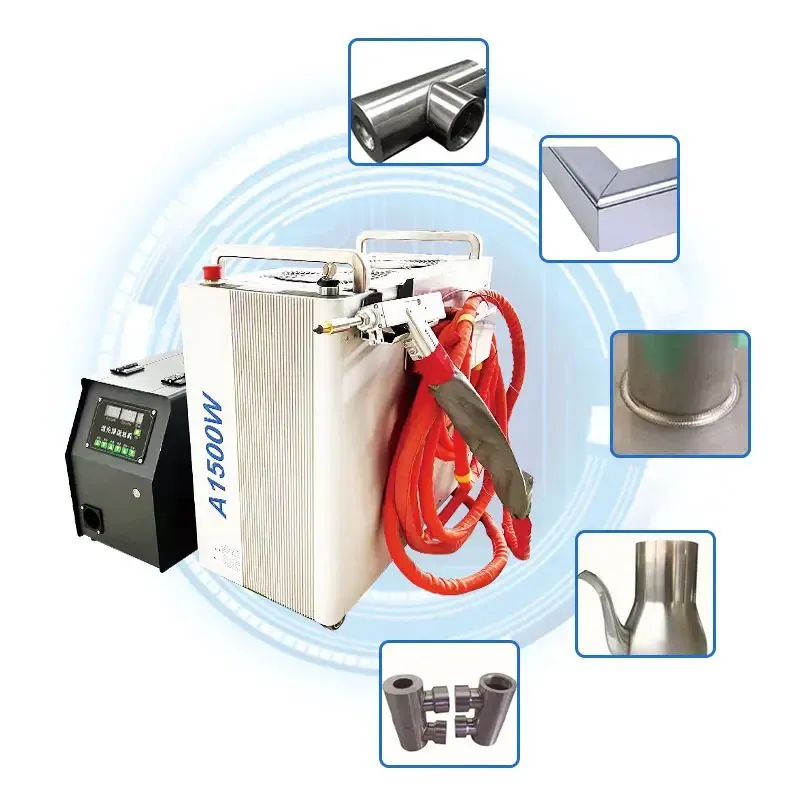

    Handheld Fiber CNC Laser Welding Machine For Aluminum Galvanized Plate Steel


    product-QUESTT-imgproduct-QUESTT-img

    product-Air Cooling Mini Portable Handheld Fiber Laser Welding Machine for Welding Aluminum Galvaniz

    Introduction

    1. The output power is 1500W, and the welding penetration reaches 4mm;
    2. Based on 976nm pump technology, high electro-optical conversion efficiency ≥42%;
    3. Single pendulum welding head with adjustable welding width;
    4. The weight of the whole machine is less than 60kg, compact design, small volume;
    5. Unique air-cooled design, low power consumption, energy saving and environmental protection, power supply 220VAC-18A;
    6. Triple protection design, built-in air pressure detection device.


    PRODUCT PARAMETERS

    ModelSTW003-1000MSTW003-1500M
    Average output power1000W1500w
    Operation ModeCW/Modulate
    Max Modulation Frequency5KHz
    PolarizationRandom
    Delivery Cable Length8M
    Power Supply1 PH 220V/50/60hZ
    Power Consumption4KW5KW
    CoolingAir Cooled
    Operation Temperature10-40 degree
    Max Depth of welding3mm4mm
    Machine Weight62Kg
