20W Small Handheld Laser Engraver Manufacturer
Sintec Laser, a world-famous fiber laser marking machine manufacturer and supplier, launches a new laser marking machine: Handheld Fiber Laser Marking Machine.
This mini handheld laser marking machine can remove the originally fixed bracket and make the handheld marking. The desktop and handheld design can meet a variety of production marking needs.
Sintec handheld fiber laser engraving system is compact and portable, small footprint, and the marking speed is twice the same type of laser. Adopting high-quality laser, the core components have long life up to 100,000 hours or more, with no need of consuming materials.
1. Using pulse fiber laser, output 25KW peak power, the high beam quality is close to the diffraction limit, M2<1.2.
2. The handheld laser engraving machine is designed with an all-fiber structure, it ensures the machine’s high reliability and doesn’t need to adjust any optic component.
3. Integrated system design make operation more convenient, and provide perfect solutions to all industrial application.
4. Long lifetime, compact design. A large water-cooling system is not needed, just simple wind-cooling. It can work in bad environments such as a little shacking, high temperature, or dust.
5. Working speed is 2-3 times faster than traditional engraving machines, with perfect beam quality.
6. One module design, facilitate maintenance, and compact size can help to save valuable laser marking working shop space.
7. Marking Area:
110x110mm/200x200mm/300x300mm/400x400mm/500x500mm/600x600mm/700x700mm/800x800mm/900x900mm/1000x1000mm
Fiber laser marking machines have wide application scope, especially used in the marking of large-size objects such as tubes and pipes, containers, pallets, and trays. Also used in the marking and engraving of hardware tools, cutlery, kitchenware, plastics, computer keyboard, metal and jewelry arts, buttons, IC, bottle packages, spectacle frames, sanitary ware, and so on.

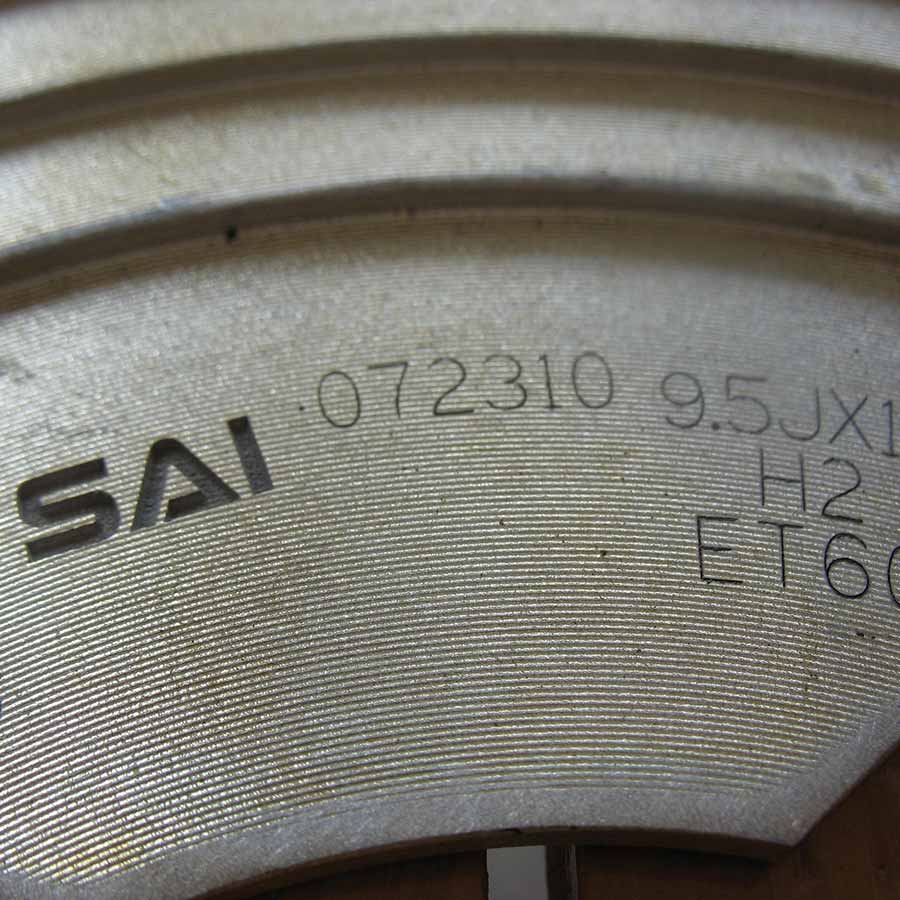

Clear and beautiful marks will never disappear. The request for a working environment is very simple. Constant temperature, humidity, and water-cooling device are not needed. This portable fiber laser marker has the least consumables and the easiest maintenance. Powerful laser marking software function is easy to learn and use. Just need a very small room for its small size, it is very convenient for users.
| Model No. | STM019-10W | STM019-20W |
| Laser wavelength (nm) | 1060～1085 | 1060～1085 |
| Average output power | 10W | 20W |
| Pulse energy | 0. 5@20kHz | 1. 0@20kHz |
| Repeated frequency(kHz) | 20～80 | 20～80 |
| Pulse width | 100@20 | 130@20 |
| Laser beam quality(M2) | ＜1. 5 | ＜1. 5 |
| Light spot diameter(mm) | 6～8 | 6～8 |
| Power regulation scope | 10%～100% | 10%～100% |
| Long-term stability of the power/8 hours | ＜3% | ＜3% |
| Cooling system | Air cooling | Air cooling |
| Working temperature(℃) | 0～40 | 0～40 |
| Power consumption (W) | 400W | 500W |
|
|
