    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Fiber Fusion Splicer, PM Polarization Maintaining Fiber/Specialty Fiber/Ribbon Fiber

    1. STXH-S-27LDF Specialty Fiber Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    FEATURES

    • Applicable to cladding diameter 125~400μm fibers
    • Accurate alignment, world standard fusion loss
    • 14s splicing time, 24s heating time for 40/60mm tube
    • Applicable to different types fibers (SM/MM/DS/NZDS)
    • Ruggedized body, waterproof, anti-dust, anti-shock
    • Easy to maintenance, easy to replace the electrodes
    • USB port for software upgrading, records exporting
    • Support 4000/100 groups fusion records/fusion images
    • Comply with CE/Rohs international standard

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining FiberRibbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Model STXH-S27-250 STXH-S27-400
    Alignment method Clad to clad
    Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Cladding diameter 125/250um 400um
    Coating diameter 250～1000µm
    Splicing program 40 groups
    Operation mode Manual/ Automatic
    Auto-heating Available
    Typical splice time 14 seconds
    Typical heating time 24 seconds for 60mm/40mm heating tube
    Fiber magnification X or Y single fiber image 125X,X and Y double image 62.5X
    Viewing display Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
    Data storage 4000 groups data records and 100 group images
    Loss evaluation Available
    Tension test 1.8～2.2N
    Interface GUI menu interface, easy for operation
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life ＞3000 times discharge (125um),＞1000 times discharge (＞125um)
    Terminals Micro-USB 2.0 port, for software upgrading, records exporting
    Operating condition Altitude:0-5000m, Humidity:0-95%, Temperature: -10℃～+50℃; Wind: max 15m/s
    Dimension/Weight 155mm (L)×144mm (W)×155mm (H) /2.3kg (including battery)

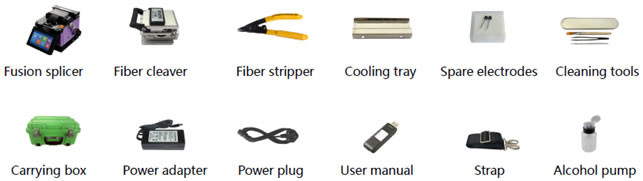

    Accessories

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    2. STXH-S-12PM Polarization Maintaining Fiber Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Features

    • Core to core alignment, low splicing loss
    • End view and Profile observation and alignment
    • Arc automatic calibration and splicing
    • PM fiber 45 and 90 degree alignment
    • Applicable to variety fibers splicing, such as Panda, bow-tie and elliptical fiber

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Applicable fiber MMF(ITU-G651),SMF(ITU-G652), NZDS(ITU-G655),DS(ITU-G653),
    PM fiber Panda fiber and other type PMF
    Cladding diameter 80～150µm
    Coating diameter 160～900µm
    Typical splice loss SMF:0.02dB MMF:0.01dB NZDS,DS:0.03dB,PMF 0.05dB
    Extinction ratio 32dB(PANDA)
    Cleaved length 10～16mm(coating diameter＜250um); 16mm(coating diameter: 250-1000um)
    Alignment method Profile and End face alignment
    Splicing program 40group
    Heating program 20group; Automatic heating
    Operation mode Manual/ Automatic
    Typical splice time Unpolarized fiber: 15seconds; PM Fiber:45seconds
    Typical heating time 30 seconds for 60mm and 40mm shrinkable sleeves
    Fiber Identification Automatically Identify SMF,MMF,NZDS,DS,PANDA PMF
    Fiber magnification 180X (X or Y view), 90X (X and Y view)
    Viewing display Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
    Data storage 4000 groups data records
    Tension test 1.8～2.25N
    Interface GUI menu interface, easy for operation
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Terminals USB 2.0 port, for software upgrading, records exporting
    Operating condition 0 ~ 40℃ Not frosted
    Dimension/Weight 260mm(W)×202mm(D)×170mm(H) /5.1kg

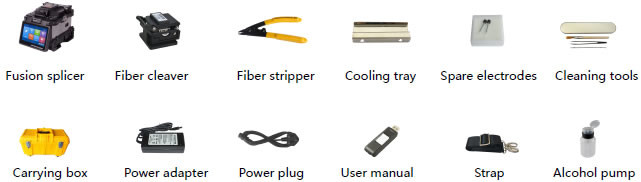

    Accessories

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    3. STXH-X-950 Ribbon Fiber Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    FEATURES

    • Applicable to 2-12 ribbon fiber splicing
    • Accurate alignment, world standard fusion loss
    • 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s
    • Applicable to different types fibers (SM/MM/DS/NZDS)
    • Ruggedized body, waterproof, anti-dust, anti-shock
    • Pluggable Li-battery, support separate charging
    • Easy to maintenance, easy to replace the electrodes
    • USB port for software upgrading, records exporting
    • Support 4000/100 groups fusion records/fusion images
    • Comply with CE/Rohs international standard

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Specifications

    Alignment method Clad to clad
    Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Fiber cores quantity Single core,2-12 cores
    Coating diameter 250～400μm
    Typical splice loss SM: 0.05dB；MM: 0.02dB；DS: 0.08dB；NZDS: 0.08dB
    Return loss ＞60dB
    Splicing program 40 groups
    Operation mode Manual/ Automatic
    Auto- heating Available
    Typical splice time 20 seconds
    Typical heating time 1-2 cores 26 seconds,4-12 cores 40 seconds
    Fiber magnification 25X
    Viewing display Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
    Data storage 4000 groups data records and 100 group images
    Loss evaluation Available
    Tension test 1.8～2.2N
    Interface GUI menu interface, easy for operation
    Battery capacity 5200mAh Li-battery, 150 cycles splicing and heating
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life More than 3000 ARC discharges, easy to replace
    Terminals USB 2.0 port, for software upgrading, records exporting
    Operating Altitude:0-5000m,Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max 15m/s
    Dimension/ Weight 155mm(L)×144mm (W)×155mm (H) /2.3kg (incuding battery)

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    4. STXH-X-900 Multi-function Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

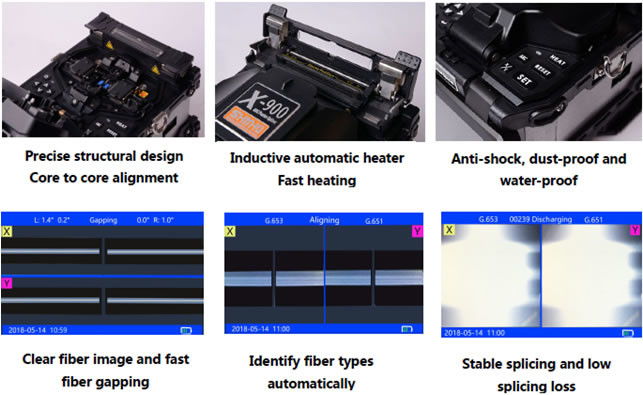

    FEATURES

    • 6 motors accurate core to core alignment
    • Identify fiber types(SM/MM) automatically
    • 6 seconds splicing & 18 seconds heating
    • Automatic & real-time ARC calibration
    • Industrial quad-core CPU with 30% power saving
    • Real-time heating temperature monitoring
    • Anti-shock, anti vibration, dustproof & waterproof
    • Apply to 250um/0.9mm/2.0mm/3.0mm fibers

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Specifications

    Alignment method 6 motors core to core alignment
    Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Cladding diameter 80 -150μm
    Coating diameter 160–1000μm
    Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
    Typical splice loss SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
    Return loss ＞60dB
    Splicing program 40 groups
    Operation mode Manual/ Automatic
    Auto- heating Available
    Typical splice time 6 seconds
    Typical heating time 18 seconds for 60mm and 40mm shrinkable sleeves
    Fiber magnification 250X(X or Y view), 125X(X and Y view)
    Viewing display Dual high sensitivity camera, 5 inch 800*480 LCD Monitor
    Data storage 4000 groups data records
    Loss evaluation Available
    Tension test 1.8～2.25N
    Interface GUI menu interface, easy for operation
    Battery capacity 5200mAh Li-battery, 300 cycles splicing and heating
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life More than 4000 ARC discharges, easy to replace
    Terminals USB 2.0 port, for software upgrading, records exporting
    Operating Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s
    Dimension/ Weight 156mm(L)×141mm(W)×156mm (H) /2.45kg (incuding battery)

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    5. STXH-S-16 Handheld FTTx Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    FEATURES

    • 4 motors accurate core to core alignment
    • 6 seconds splicing & 18 seconds heating
    • Automatic & real-time ARC calibration
    • Industrial quad-core CPU, faster & more stable
    • Real-time heating temperature monitoring
    • Anti-shock, anti vibration, dust-proof & waterproof
    • Apply to 250um/0.9mm/2.0mm/3.0mm fibers etc.
    • Suitable for medium backbone, FTTx projects etc.

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Specifications

    Alignment method 4 motors core to core alignment
    Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Cladding diameter 80 -150μm
    Coating diameter 160–1000μm
    Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
    Typical splice loss SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
    Return loss ＞60dB
    Splicing program 40 groups
    Operation mode Manual/ Automatic
    Auto- heating Available
    Typical splice time 6 seconds
    Typical heating time 18 seconds for 60mm and 40mm shrinkable sleeves
    Fiber magnification 250X(X or Y view), 125X(X and Y view)
    Viewing display Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
    Data storage 4000 groups data records
    Loss evaluation Available
    Tension test 1.8～2.25N
    Interface GUI menu interface, easy for operation
    Battery capacity 5200mAh Li-battery, 250 cycles splicing and heating
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life More than 4000 ARC discharges, easy to replace
    Terminals USB 2.0 port, for software upgrading, records exporting
    Operating Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s
    Dimension / Weight 160mm (L) x 136mm (W) x 140mm (H) / 2.20kg (including battery)

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    6. STXH-X-97 Handheld FTTx Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    FEATURES

    • Small and light, easy to carry
    • 4 motors accurate core to core alignment
    • 7 seconds splicing & 26 seconds heating
    • Automatic & real-time ARC calibration
    • Heating temperature and time both adjustable
    • Automatic splicing and heating, easy to operate
    • Apply to bare fiber, pigtails, drop cable etc.
    • Suitable for FTTx, FTTH, CATV projects etc.

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Specfications

    Alignment method 4 motors core to core alignment
    Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Cladding diameter 80 -150μm
    Coating diameter 160–1000μm
    Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
    Typical splice loss SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
    Return loss ＞60dB
    Splicing program 40 groups
    Operation mode Manual/ Automatic
    Auto- heating Available
    Typical splice time 7 seconds
    Typical heating time 26 seconds for 60mm and 40mm shrinkable sleeves
    Fiber magnification 250X(X or Y view), 125X(X and Y view)
    Viewing display Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
    Data storage 4000 groups data records
    Loss evaluation Available
    Tension test 1.8～2.25N
    Interface GUI menu interface, easy for operation
    Battery capacity 5200mAh Li-battery, 250 cycles splicing and heating
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life More than 4000 ARC discharges, easy to replace
    Terminals USB 2.0 port, for software upgrading, records exporting
    Operating Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s
    Dimensions / Weight 149mm (L) x 120mm(W) x 127mm(H) / 1.90kg (including battery)

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    7. STXH-X-800 Handheld FTTx Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    FEATURES

    • 4 motors accurate core to core alignment
    • 6 seconds splicing & 20 seconds heating
    • Automatic & real-time ARC calibration
    • Heating temperature and time both adjustable
    • Automatic splicing and heating, easy to operate
    • Anti-shock, anti vibration, dust-proof & waterproof
    • Apply to bare fiber, pigtails, drop cable etc.
    • Suitable for FTTx, FTTH, CATV, MAN projects etc.

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Specificaitons

    Alignment method 4 motors core to core alignment
    Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Cladding diameter 80 -150μm
    Coating diameter 160–1000μm
    Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
    Typical splice loss SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
    Return loss ＞60dB
    Splicing program 40 groups
    Operation mode Manual/ Automatic
    Auto- heating Available
    Typical splice time 6 seconds
    Typical heating time 20 seconds for 60mm and 40mm shrinkable sleeves
    Fiber magnification 250X(X or Y view), 125X(X and Y view)
    Viewing display Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
    Data storage 4000 groups data records
    Loss evaluation Available
    Tension test 1.8～2.25N
    Interface GUI menu interface, easy for operation
    Battery capacity 5200mAh Li-battery, 250 cycles splicing and heating
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life More than 4000 ARC discharges, easy to replace
    Terminals USB 2.0 port, for software upgrading, records exporting
    Operating Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s
    Dimensions / Weight 157mm(L) x 136mm(W) x 140mm(H) / 2.10kg (including battery)

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    8. STXH-X-600 Handheld FTTx Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    FEATURES

    • Small and light, easy to carry
    • 4 motors accurate core to core alignment
    • 7 seconds splicing & 26 seconds heating
    • Automatic & real-time ARC calibration
    • Heating temperature and time both adjustable
    • Automatic splicing and heating, easy to operate
    • Apply to bare fiber, pigtails, drop cable etc.
    • Suitable for FTTx, FTTH, CATV projects etc.

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Specifications

    Alignment method 4 motors core to core alignment
    Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Cladding diameter 80 -150μm
    Coating diameter 160–1000μm
    Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
    Typical splice loss SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
    Return loss ＞60dB
    Splicing program 40 groups
    Operation mode Manual/ Automatic
    Auto- heating Available
    Typical splice time 7 seconds
    Typical heating time 26 seconds for 60mm and 40mm shrinkable sleeves
    Fiber magnification 250X(X or Y view), 125X(X and Y view)
    Viewing display Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
    Data storage 4000 groups data records
    Loss evaluation Available
    Tension test 1.8～2.25N
    Interface GUI menu interface, easy for operation
    Battery capacity 4400mAh Li-battery, 220 cycles splicing and heating
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life More than 4000 ARC discharges, easy to replace
    Terminals USB 2.0 port, for software upgrading, records exporting
    Operating Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s
    Dimension/Weight 200mm(L) x 123mm(W) x 95mm(H) /1.60kg (including battery)

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    9. STXH-X-700 Handheld FTTx Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    FEATURES

    • 4 motors accurate core to core alignment
    • 6 seconds splicing & 20 seconds heating
    • Automatic & real-time ARC calibration
    • Heating temperature and time both adjustable
    • Automatic splicing and heating, easy to operate
    • Anti-shock, anti vibration, dust-proof & waterproof
    • Apply to bare fiber, pigtails, drop cable etc.
    • Suitable for FTTx, FTTH, CATV, MAN projects etc.

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Specificaitons

    Alignment method 4 motors core to core alignment
    Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Cladding diameter 80 -150μm
    Coating diameter 160–1000μm
    Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
    Typical splice loss SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
    Return loss ＞60dB
    Splicing program 40 groups
    Operation mode Manual/ Automatic
    Auto- heating Available
    Typical splice time 6 seconds
    Typical heating time 20 seconds for 60mm and 40mm shrinkable sleeves
    Fiber magnification 250X(X or Y view), 125X(X and Y view)
    Viewing display Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
    Data storage 4000 groups data records
    Loss evaluation Available
    Tension test 1.8～2.25N
    Interface GUI menu interface, easy for operation
    Battery capacity 5200mAh Li-battery, 250 cycles splicing and heating
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life More than 4000 ARC discharges, easy to replace
    Terminals USB 2.0 port, for software upgrading, records exporting
    Operating Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s
    Dimension/Weight 160mm(L) x 136mm(W) x 140mm(H) / 2.10kg (including battery)

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    10. STXH-X-500 Handheld FTTx Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    FEATURES

    • Small and light, easy to carry
    • 4 motors accurate core to core alignment
    • 7 seconds splicing & 26 seconds heating
    • Automatic & real-time ARC calibration
    • Heating temperature and time both adjustable
    • Automatic splicing and heating, easy to operate
    • Apply to bare fiber, pigtails, drop cable etc.
    • Suitable for FTTx, FTTH, CATV projects etc.

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Specifications

    Alignment method 4 motors core to core alignment
    Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Cladding diameter 80 -150μm
    Coating diameter 160–1000μm
    Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
    Typical splice loss SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
    Return loss ＞60dB
    Splicing program 40 groups
    Operation mode Manual/ Automatic
    Auto- heating Available
    Typical splice time 7 seconds
    Typical heating time 26 seconds for 60mm and 40mm shrinkable sleeves
    Fiber magnification 250X(X or Y view), 125X(X and Y view)
    Viewing display Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
    Data storage 4000 groups data records
    Loss evaluation Available
    Tension test 1.8～2.25N
    Interface GUI menu interface, easy for operation
    Battery capacity 5200mAh Li-battery, 250 cycles splicing and heating
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life More than 4000 ARC discharges, easy to replace
    Terminals USB 2.0 port, for software upgrading, records exporting
    Operating Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～ +50 ℃ ;Wind:max 15m/s
    Dimension/Weight 149mm(L) x 120mm(W) x 127mm(H) / 1.90kg (including battery)

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    11. STXH-A3 Handheld FTTx Fusion Splicer

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    FEATURES

    • Small and light, easy to carry
    • 4 motors accurate core to core alignment
    • 7 seconds splicing & 26 seconds heating
    • Automatic & real-time ARC calibration
    • Heating temperature and time both adjustable
    • Automatic splicing and heating, easy to operate
    • Apply to bare fiber, pigtails, drop cable etc.
    • Suitable for FTTx, FTTH, CATV projects etc.

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Specifications

    Alignment method 4 motors core to core alignment
    Applicable fiber SM(G.652),MM(G.651),DS(G.653),NZDS(G.655)
    Cladding diameter 80 -150μm
    Coating diameter 160–1000μm
    Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um)
    Typical splice loss SM: 0.02dB；MM: 0.01dB；DS: 0.04dB；NZDS: 0.04dB
    Return loss ＞60dB
    Splicing program 40 groups
    Operation mode Manual/ Automatic
    Auto- heating Available
    Typical splice time 7 seconds
    Typical heating time 26 seconds for 60mm and 40mm shrinkable sleeves
    Fiber magnification 250X(X or Y view), 125X(X and Y view)
    Viewing display Dual high sensitivity camera, 4.3 inch 800*480 LCD Monitor
    Data storage 4000 groups data records
    Loss evaluation Available
    Tension test 1.8～2.25N
    Interface GUI menu interface, easy for operation
    Battery capacity 5200mAh Li-battery, 250 cycles splicing and heating
    Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
    Electrode life More than 4000 ARC discharges, easy to replace
    Terminals USB 2.0 port, for software upgrading, records exporting
    Operating Altitude:0-5000m,Humidity:0-95%,Temperature:-10 ℃ ～+50 ℃ ;Wind:max 15m/s
    Dimension/Weight 149mm(L) x 120mm(W) x 127mm(H) /1.90kg (including battery)
    Product Tags:

    Fiber Fusion Splicer



    Ribbon Fiber Fusion Splicer



    Fusion Splicer


    Quality Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber for sale

    Ribbon Fiber / Specialty Fiber Fusion Splicer PMF Polarization Maintaining Fiber

    Inquiry Cart 0
    Send your message to this supplier

    *From:
    *To: Wuhan Sintec Optronics Co., Ltd,
    *Subject:
    *Message:
    Characters Remaining: (0/3000)

    Find Similar Products By Category:
    Manufacturing & Processing Machinery
    Hot Searches:

    Friendly Links: www.everychina.com

    Home| Products| Suppliers| Site Map |About Us |Contact Us |Help |关于我们 |联系我们

    Copyright © 2009 - 2025 himfr.com. All rights reserved.

    北京环球广贸软件技术有限责任公司
